Help wiring an HLG driver

[Mjaj3184]

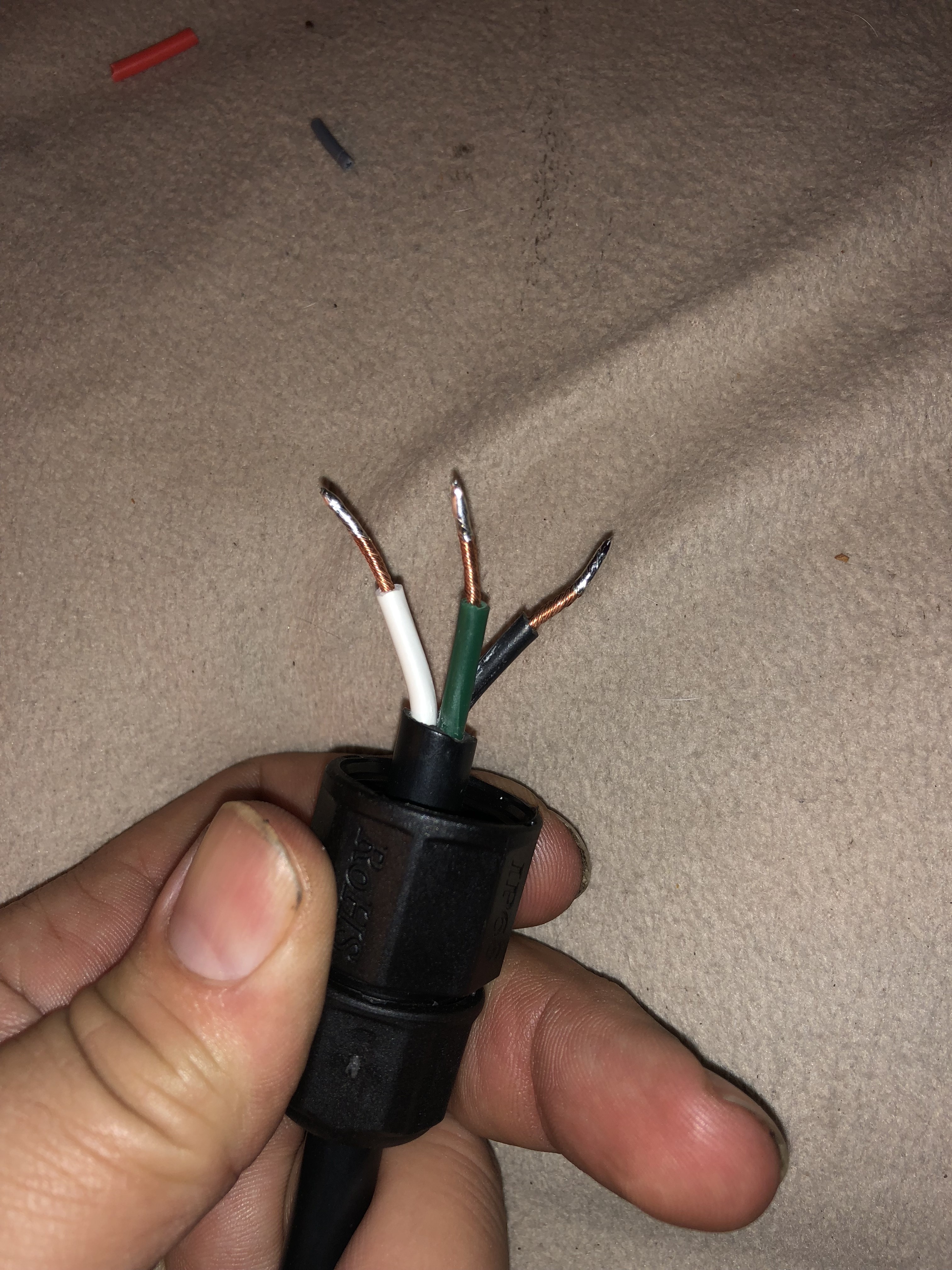

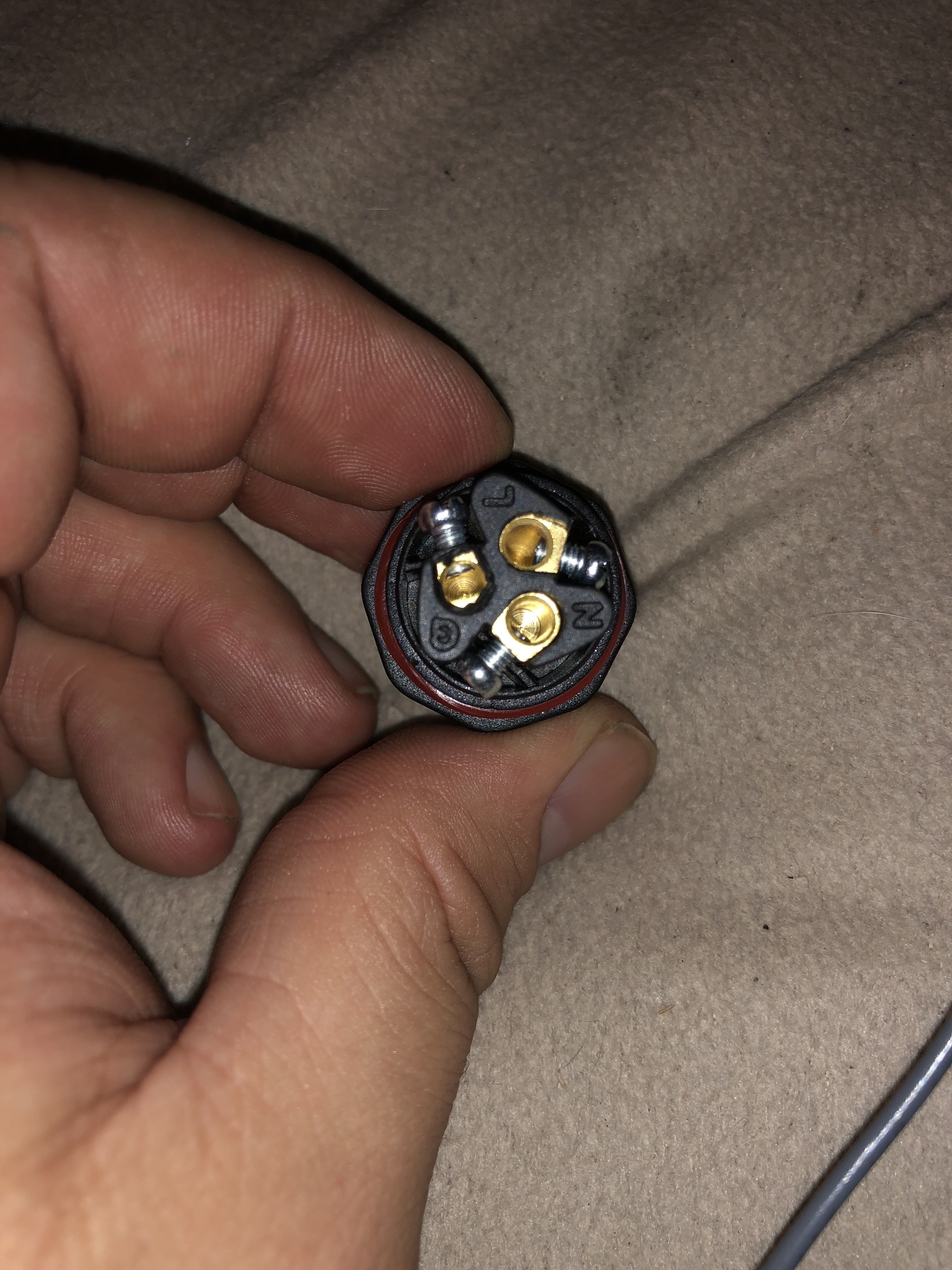

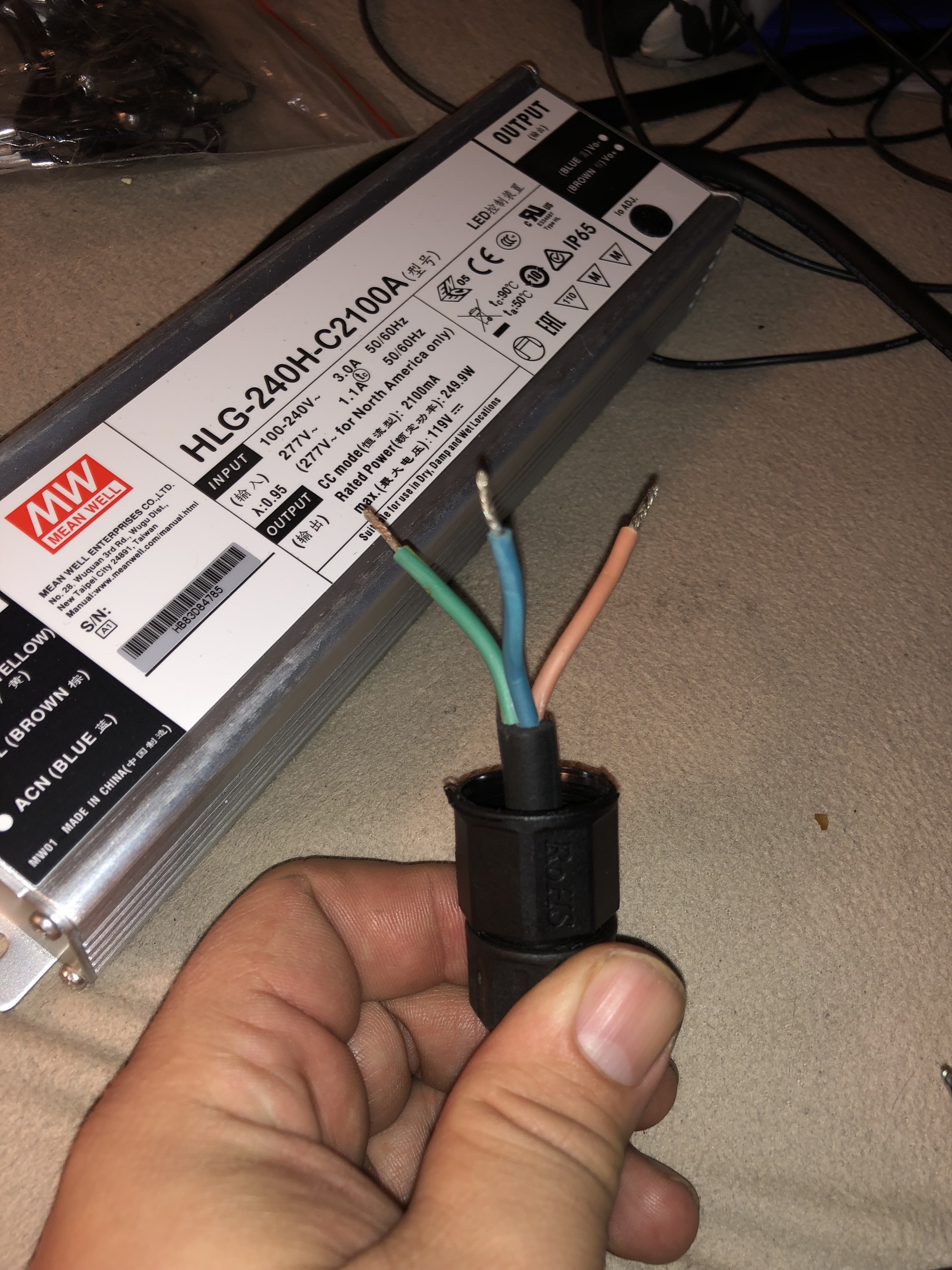

I am having trouble connecting my HLG-240H-C2100A driver to the ATPWONZ junction then to the power cord. The driver has three colored wires which are Blue, Brown and the third is Green/Yellow, the junction has three spots labeled N, L, G on either side. My power cord also has three wires which are White, Black and the third is Green. Can someone please help me? I don’t know where to put these



[Toker1]

My guess...N= neutral (white), g= ground (green), & l= lead (black)



[Qwertywill]

White = nutral(N), black =live (L) and green yellow is ground. (G)

It will still run if you have white/black mixed up pending the circut. So long as ground is hooked properly or you will trip your breaker.



[gbauto]

No problem-green is the ground wire. Blue wire on the driver is the neutral(N terminal) and connects to the white wire on your power cord. The grey wire(Line) connects to the L terminal and then to the black wire on the power cord.
