HYDRO Grow room plan C for new grow

George4green

George4green

New member
Some may know but it a 9’6”(wide)x16’(long)around 9’ tall (will get the exact updated, 6- Grow site (13GAL each) 3” pvc piping, Current Culture XXL13, Have a 13 gal trash can as a top of res. 3-30 gal trash cans as RO water holding tanks (going to look at moving to 2 for saving space, 4 spectrum king SK402 (I believe??), 30” plant spacing for each row of two 20” centers to side wall corners a little more “””, going to rig up fans on my lights and get rid of heat AC of 14,000btu not keeping up last grow, doing 68”x 40” trills set of two or three per 2 plants not sure yet probably have one side swing off the wall and supported by chain or rope. I’m sure there more I figured out but forgot been making drawings of ideas. Any ideas or questions more the welcome and I’ll post updates


Attachments

  • photo83569.jpg
    2.8 MB · Views: 0
  • photo83570.jpg
    2.4 MB · Views: 0
What kind of yields possible from a set up like this? Approximate price range on all equipment? I’m a brand new grower about to harvest my first but I’ve watched people growing for years. However, I’ve never seen a fairly “cheap”, fairly large hydro set up.

Ya probably won’t lol. Lights (for the led) 3,000 then probably another 2500-3000. Make your own and do the MH HPS probably about 2000

I guess really depends how you build it and how much actual equipment you get. Like ex. I bought a 1/4hp water chiller from the get go some get away with frozen water bottles. Another note I spent about $100 a week on electric this grow and got about 4- 4.5 lbs out of 6 but had some issues this round

I hear that. Was just curious. I’ve heard of a lot of people making smaller hydro setups for pretty cheap. Maybe in the future, once I’ve become good and familiar with growing, I’ll build me something. I also live right in the middle of town with the PD less than a block away so building something like that is a little risky for me at the moment. Lmfao

Got a new AC put in. Technically it’s the same BTU (14000) but back to the window type unit. Went to a portable because of light glowing in the night tru the window type but the portable wasn’t doing anything for RH decrees. Ordered parts so hopefully in a week or so room be clean and ready

Do AC’s really contribute that much to humidity in the grow room? I mean, I can understand why but it really doesn’t seem like it would put out that much humidity.

The A/C makes a RH problem worse, not because it's adding water to the air. Reduce temps, the dew point drops and you get....dew. I'm guessing his portable A/C also had a dehumidifier.

I run a separate dehumidifier. Between the dehumidifier lights and the water chiller heat load last grow the ac wouldn’t keep up. It just seemed to me the widow unit type ac worked better then the portable type. I don’t have facts for that statement just how things seem. There both the same btu. Just sucks now I have a big ac sticking out of my room that will glow in the dark lol

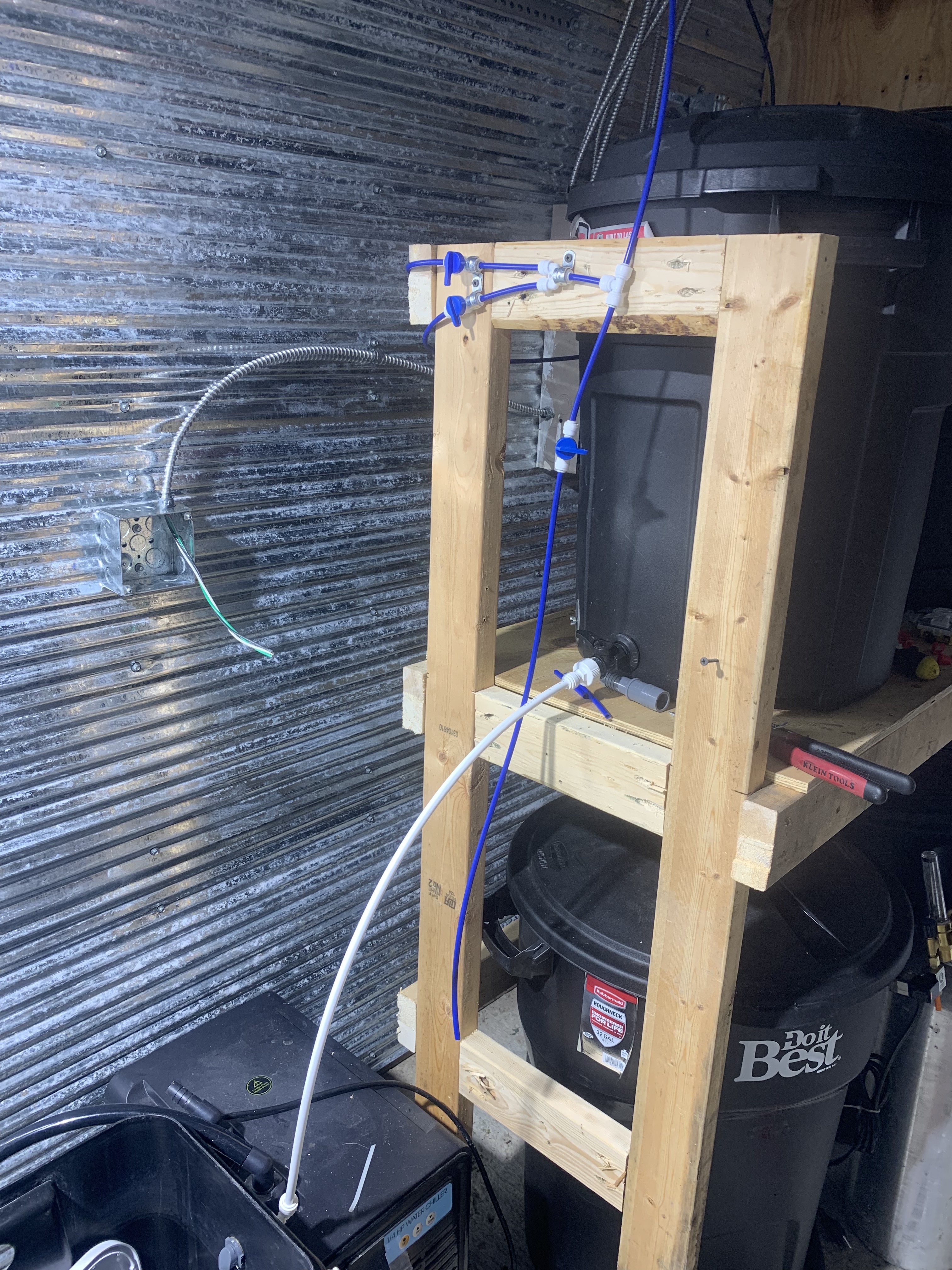

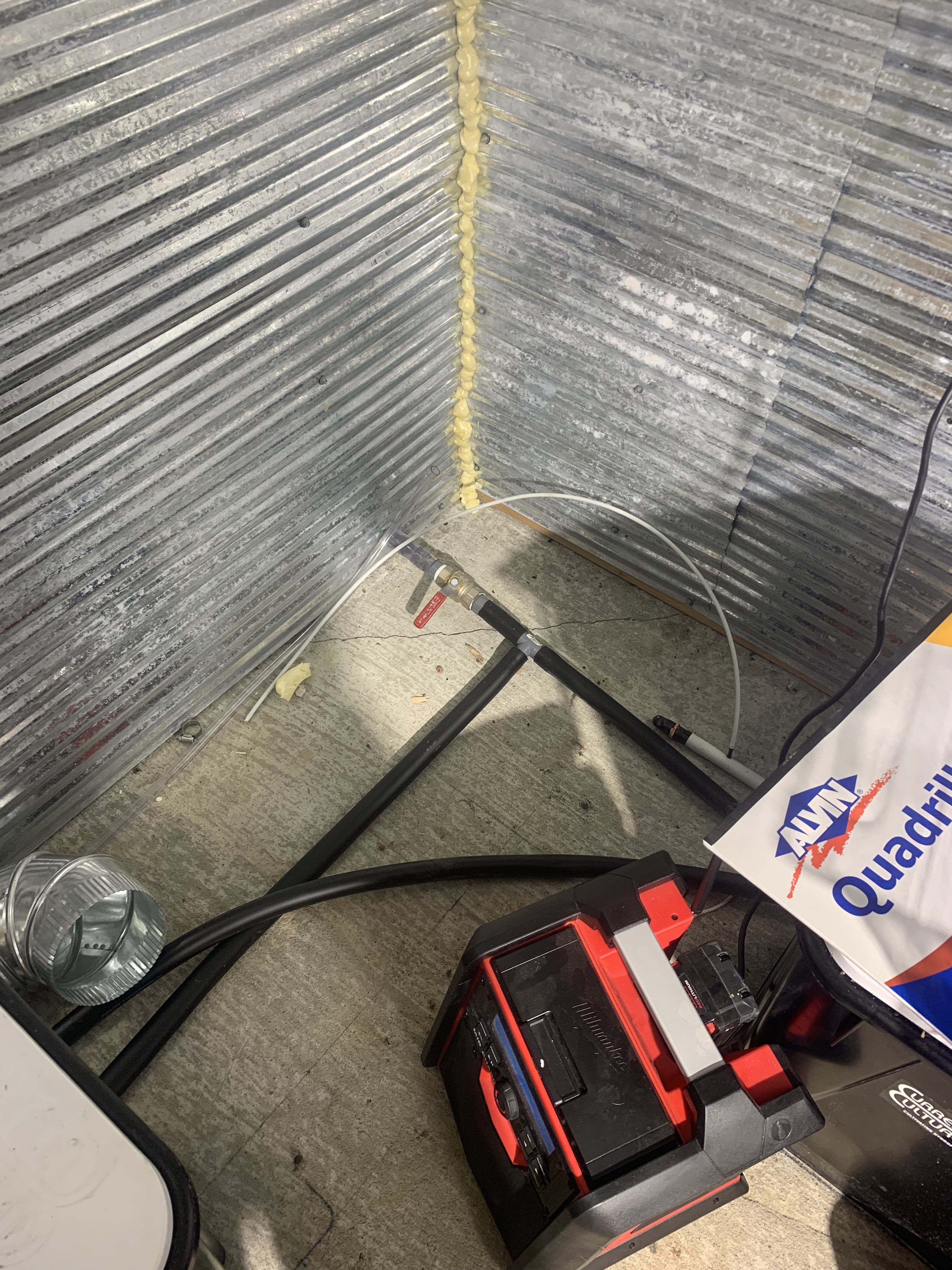

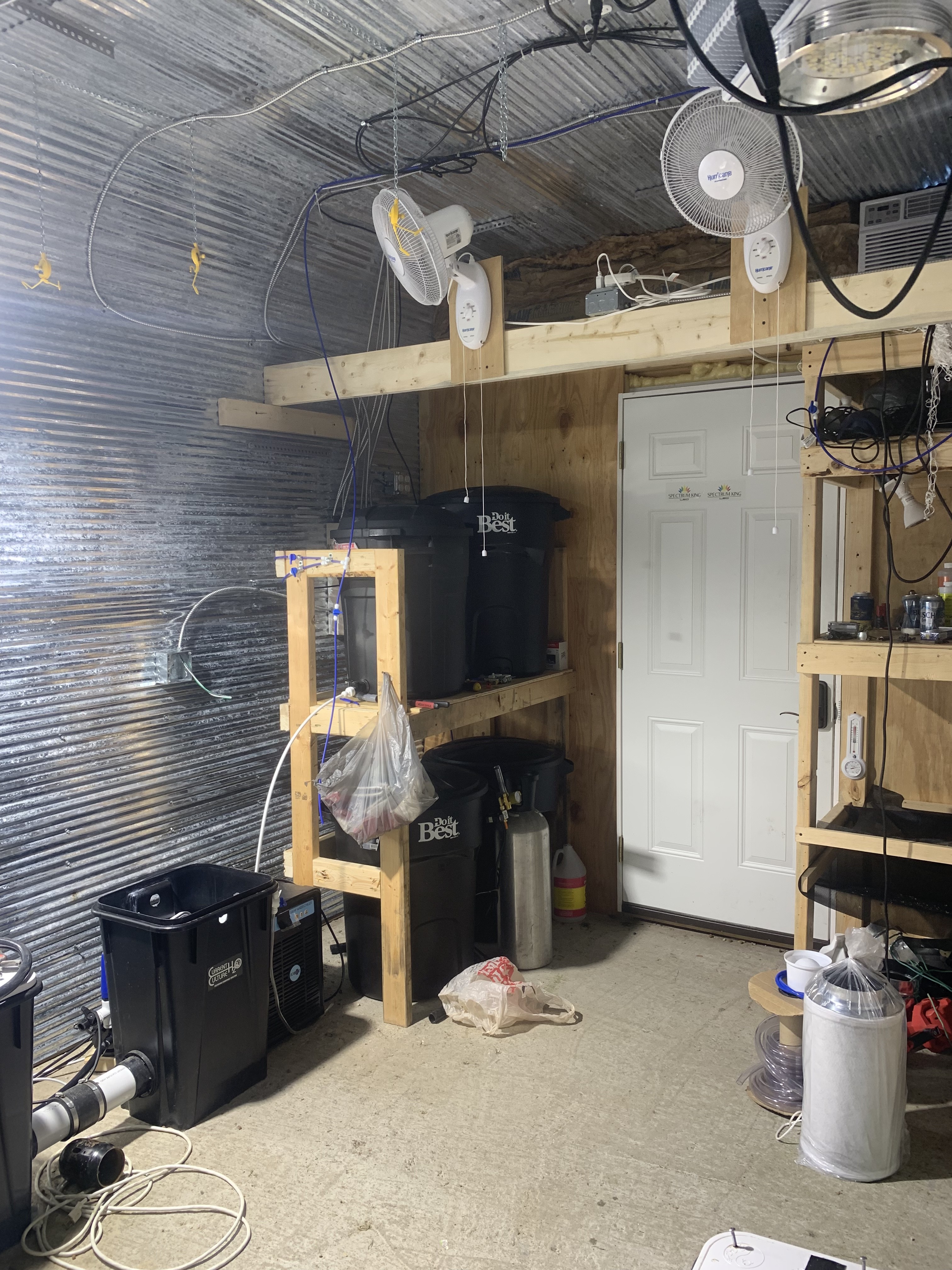

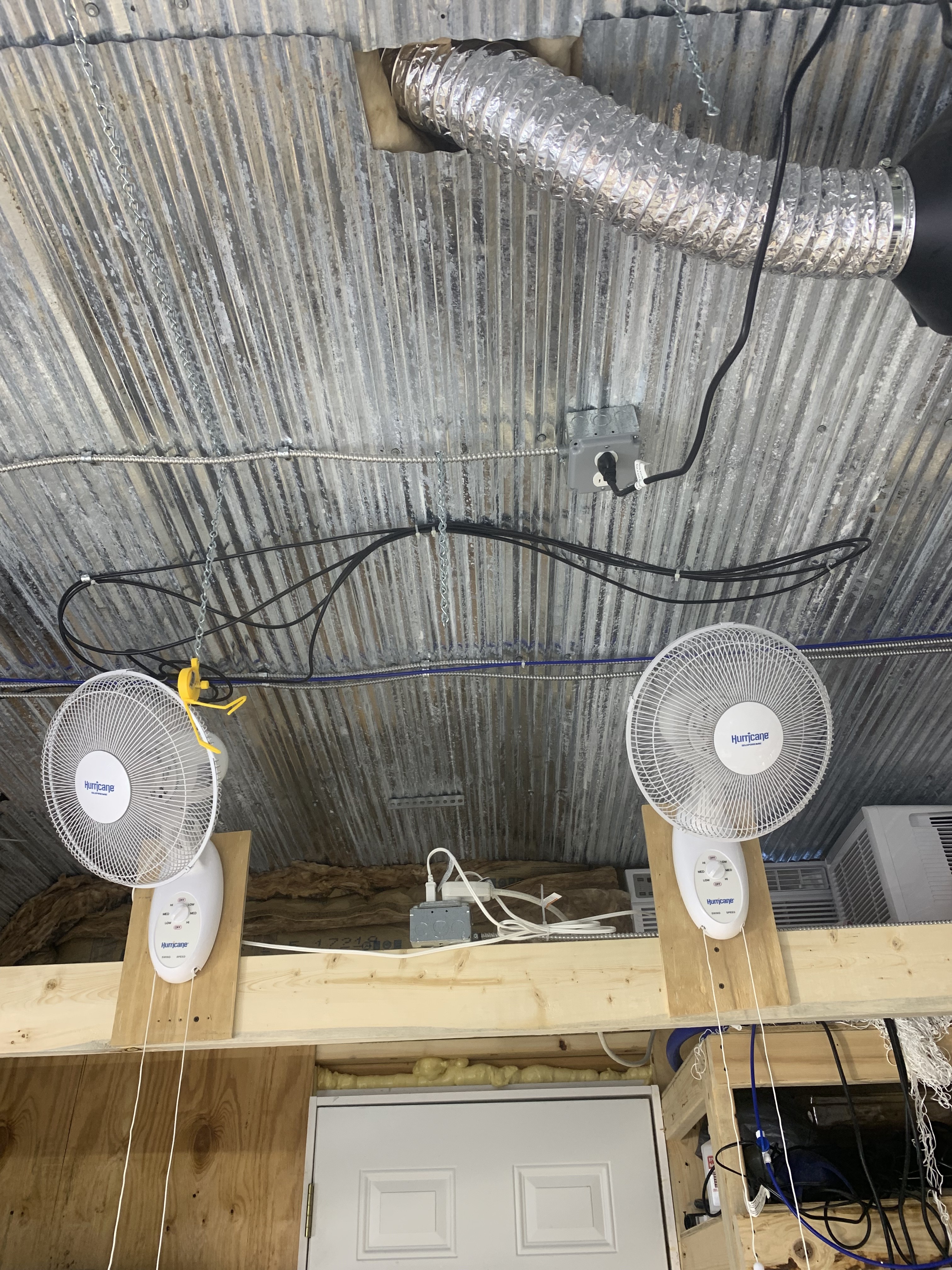

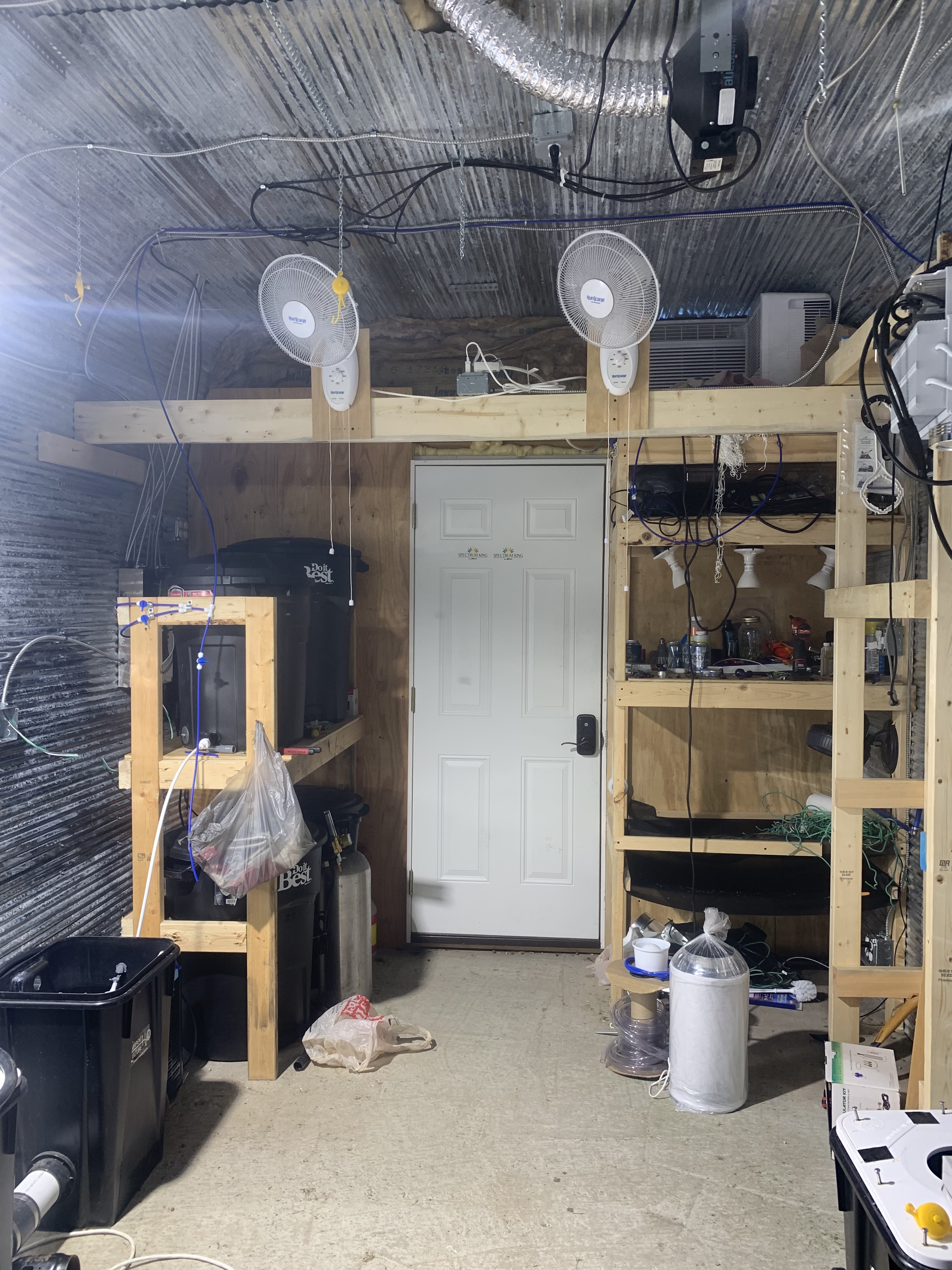

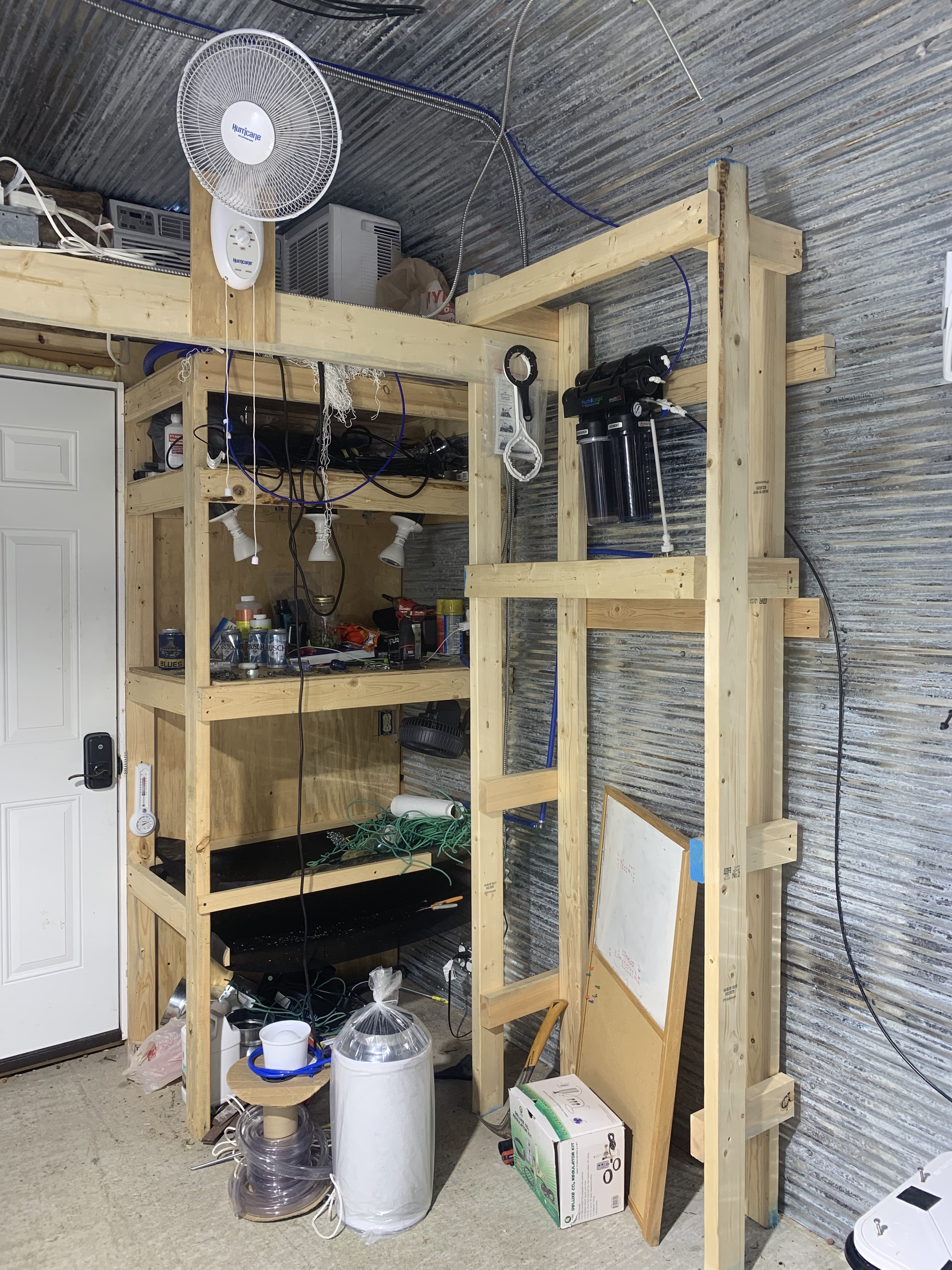

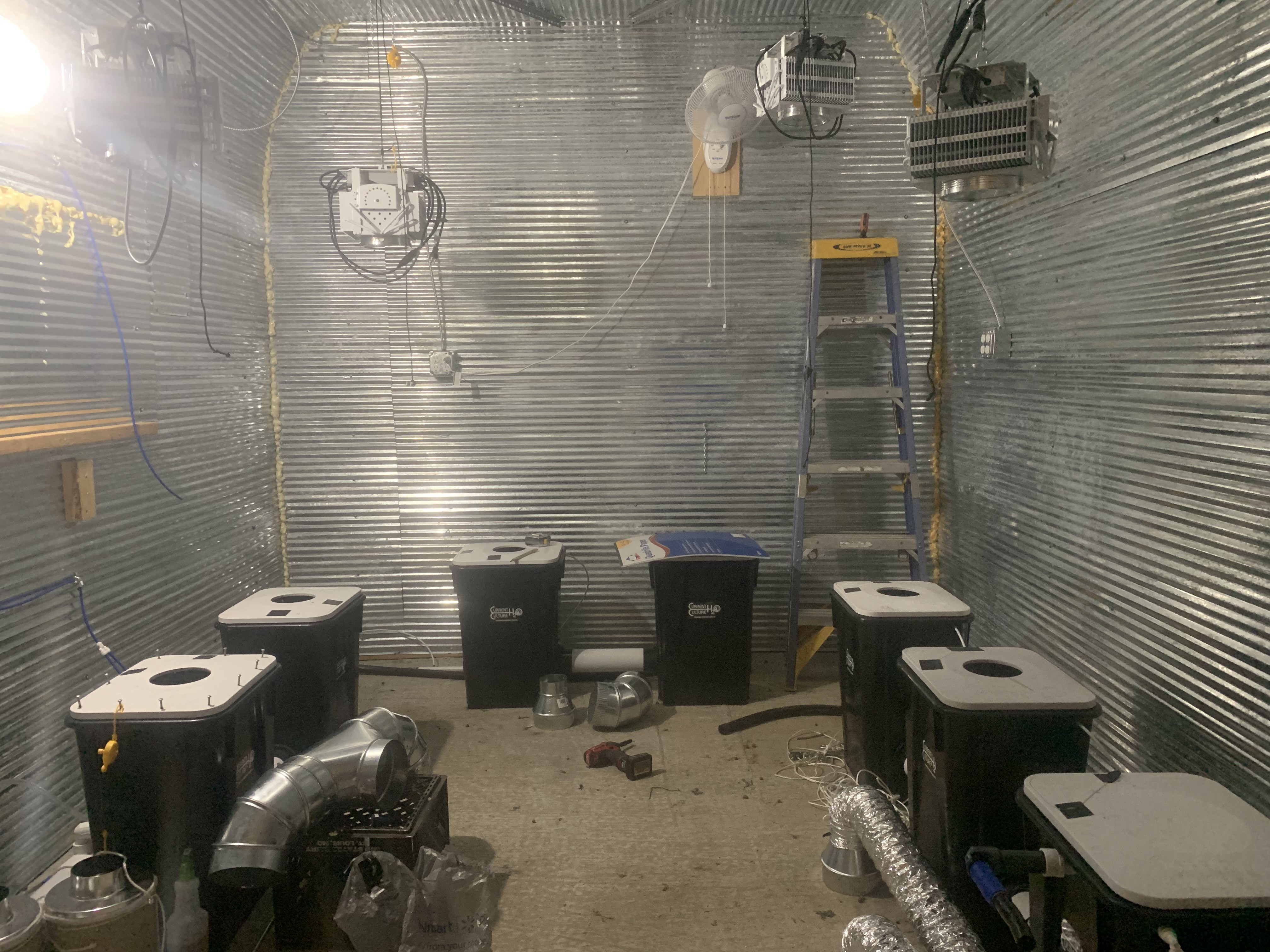

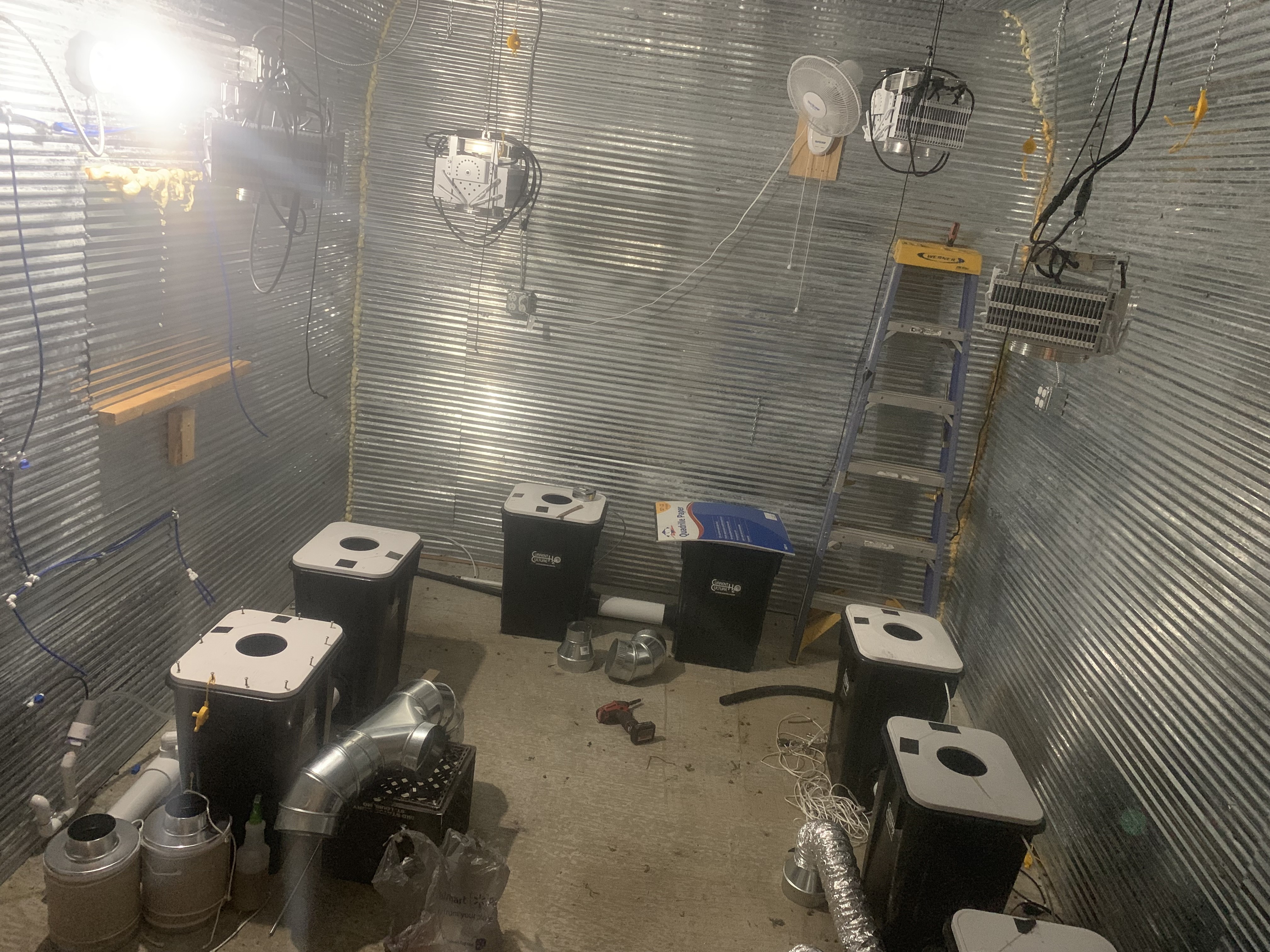

Got a little more done. Shelf on right will have some kind of door or curtain to keep light out. It will house the nutes and RO filter. Shelf on back right is for propagation. Shelf on left holds all my trash cans for water. Over there I have three water valves, one is for main top off res, one for holding tanks for water change, other just a short whip for filling spray bottle and what not. Going to Put my water pump, chiller, and air pump on switch’s this time. CO2 rain system mounted above fans to spread through out the room (still waiting on CO2 monitor). I thank the wife going to let me buy a mini split AC so that will be great. The window unit sticks out like crazy. Luckily have a guy that does ac and a pot head and trust worthy to keep mouth shut. System drain out done and plumbed in just waiting on my bulkheads to finish the 3” pvc. Also waiting on some duck work for venting my lights


Attachments

  • photo83960.jpg
    2.5 MB · Views: 0
[No message]


Attachments

  • photo83961.jpg
    2.7 MB · Views: 0
  • photo83962.jpg
    2.8 MB · Views: 1
  • photo83963.jpg
    2.6 MB · Views: 1
  • photo83964.jpg
    2.7 MB · Views: 0
  • photo83965.jpg
    2.8 MB · Views: 0
Ah, ok. Thank you for the info! Was curious about that but I couldn’t ever find anything with some straight up facts, just opinions.

Very nice. My next grow, I’m planning to have a decent bit of duct work due to my LED making the tent just wayyyy too hot for my little exhaust fan to do anything about. Days where it reaches 95-100, my tent gets up to like 86 and it’s just too much for it. Had a foxtail pop up.. luckily I’m about to harvest. Like literally in the next hour. Lol

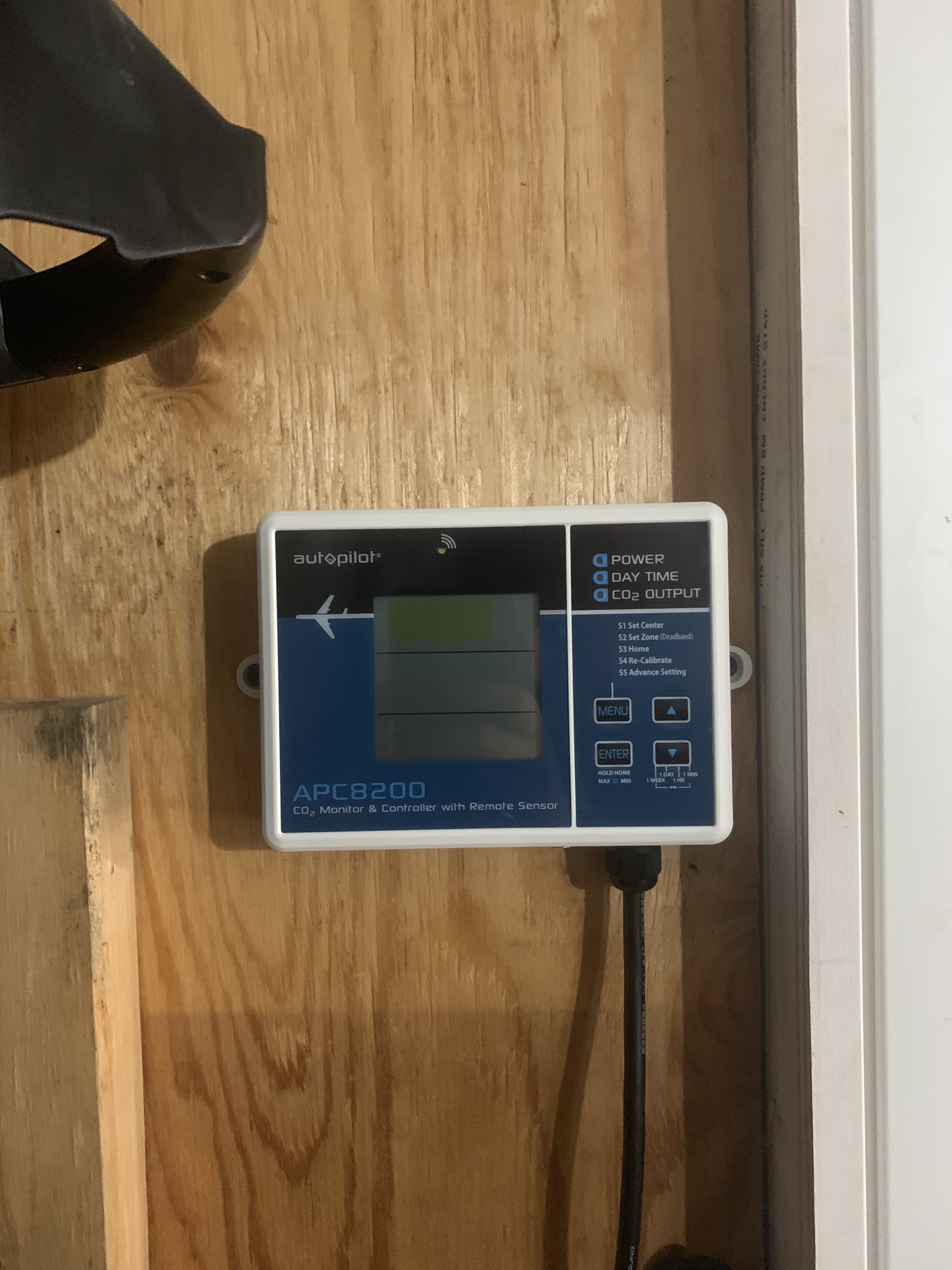

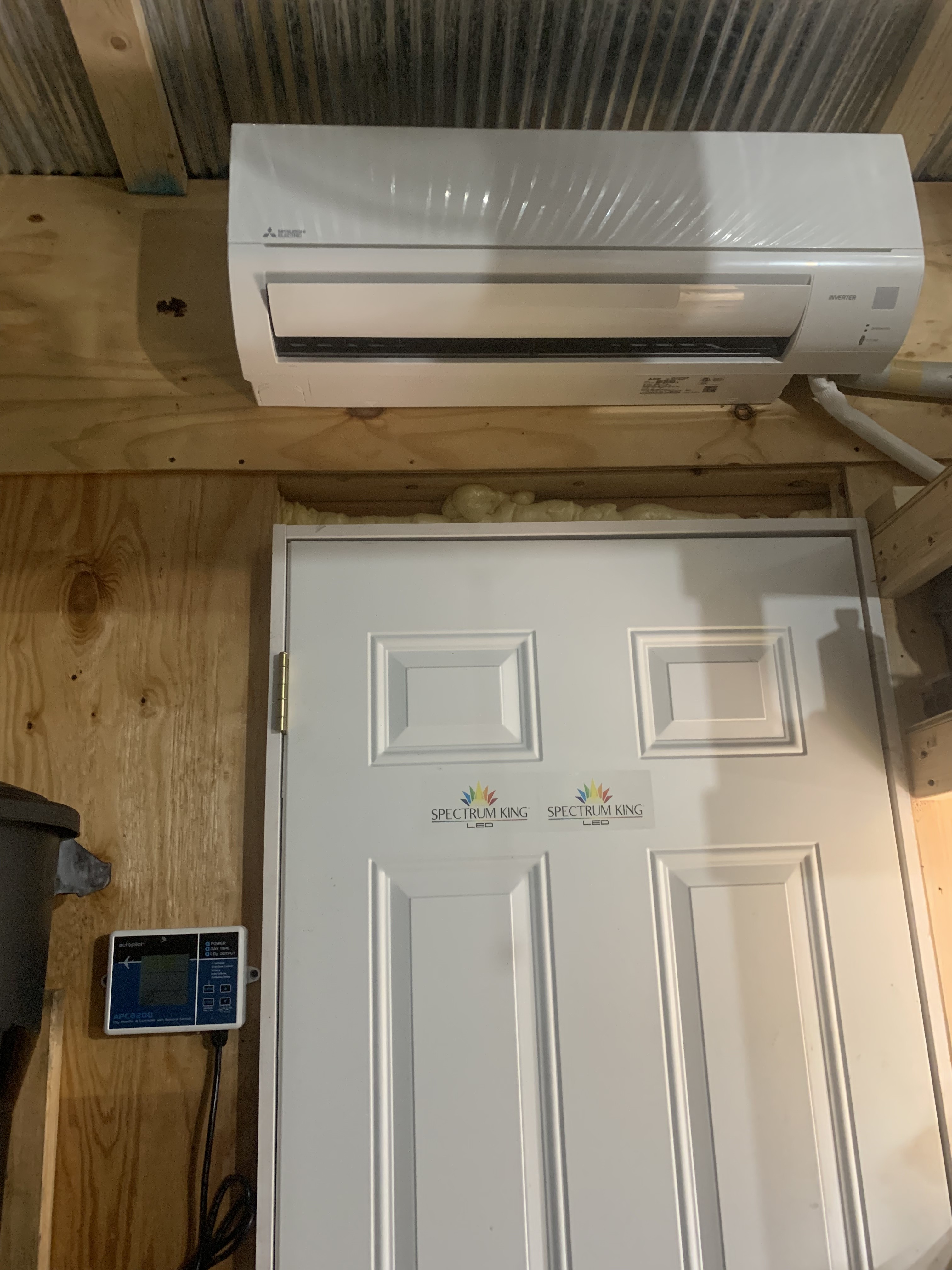

Picked up AC today and started the install and good old UPS brought my autopilot CO2 controller


Attachments

  • photo84088.jpg
    1.4 MB · Views: 1
  • photo84089.jpg
    2.2 MB · Views: 0

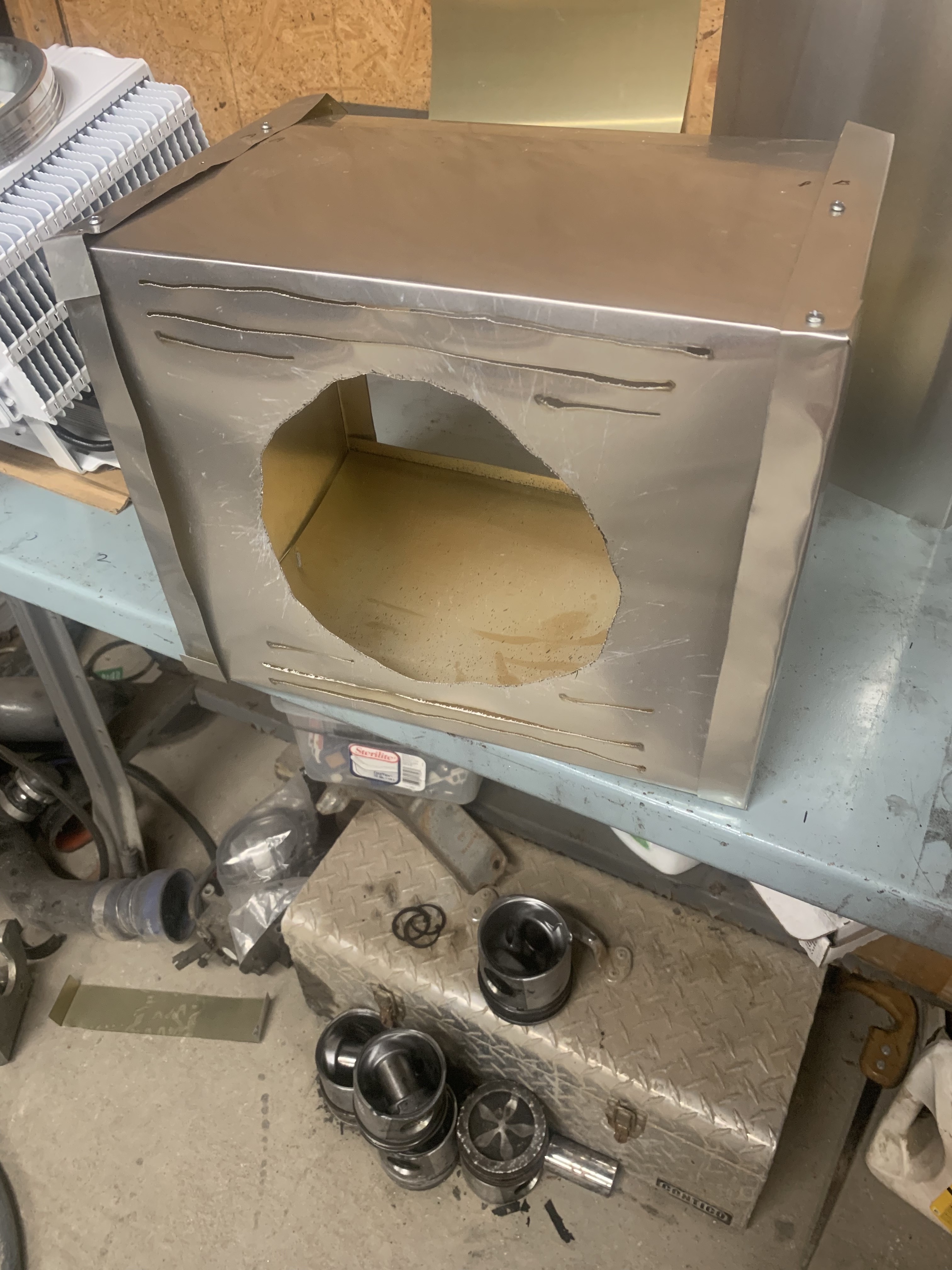

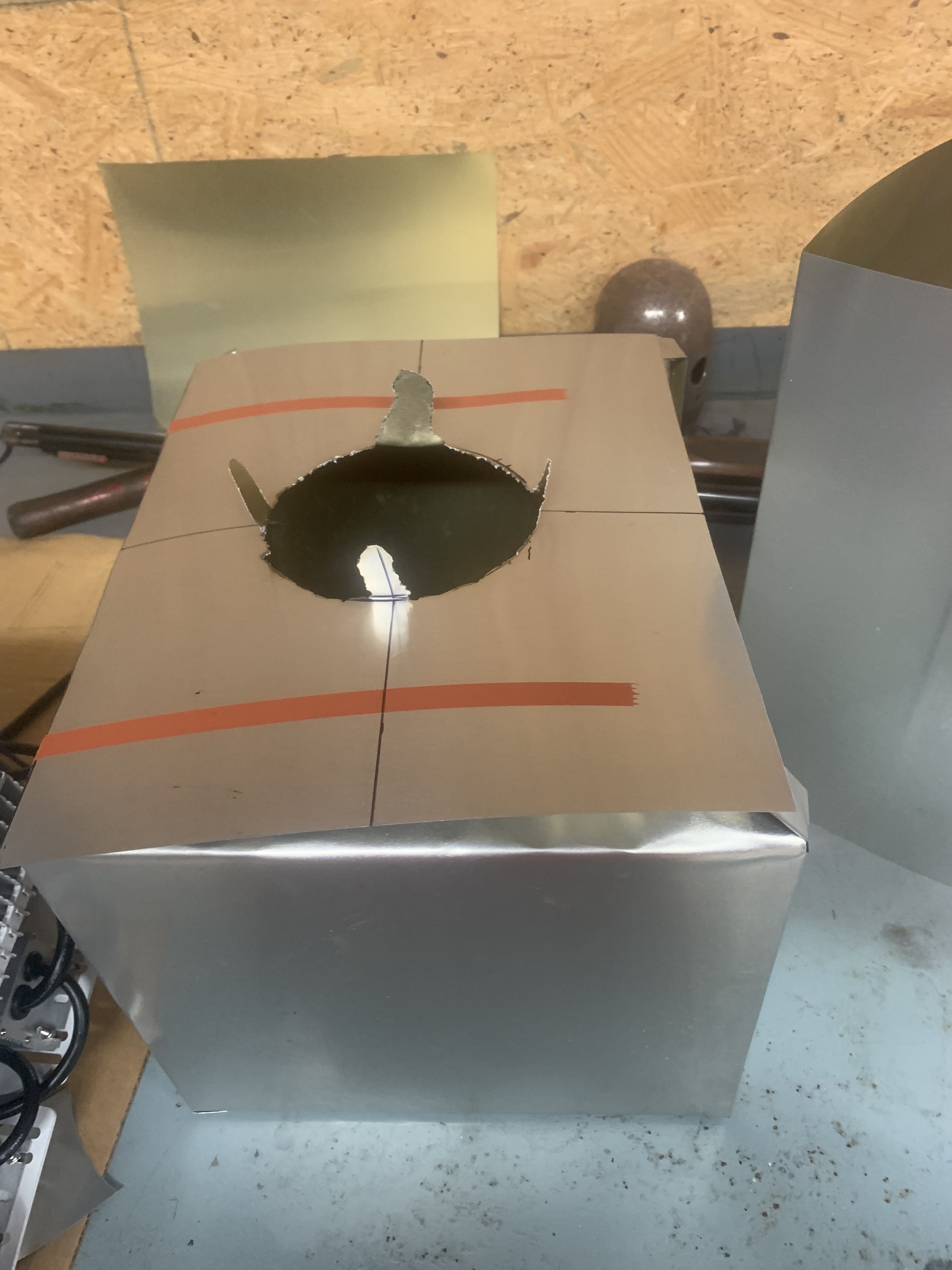

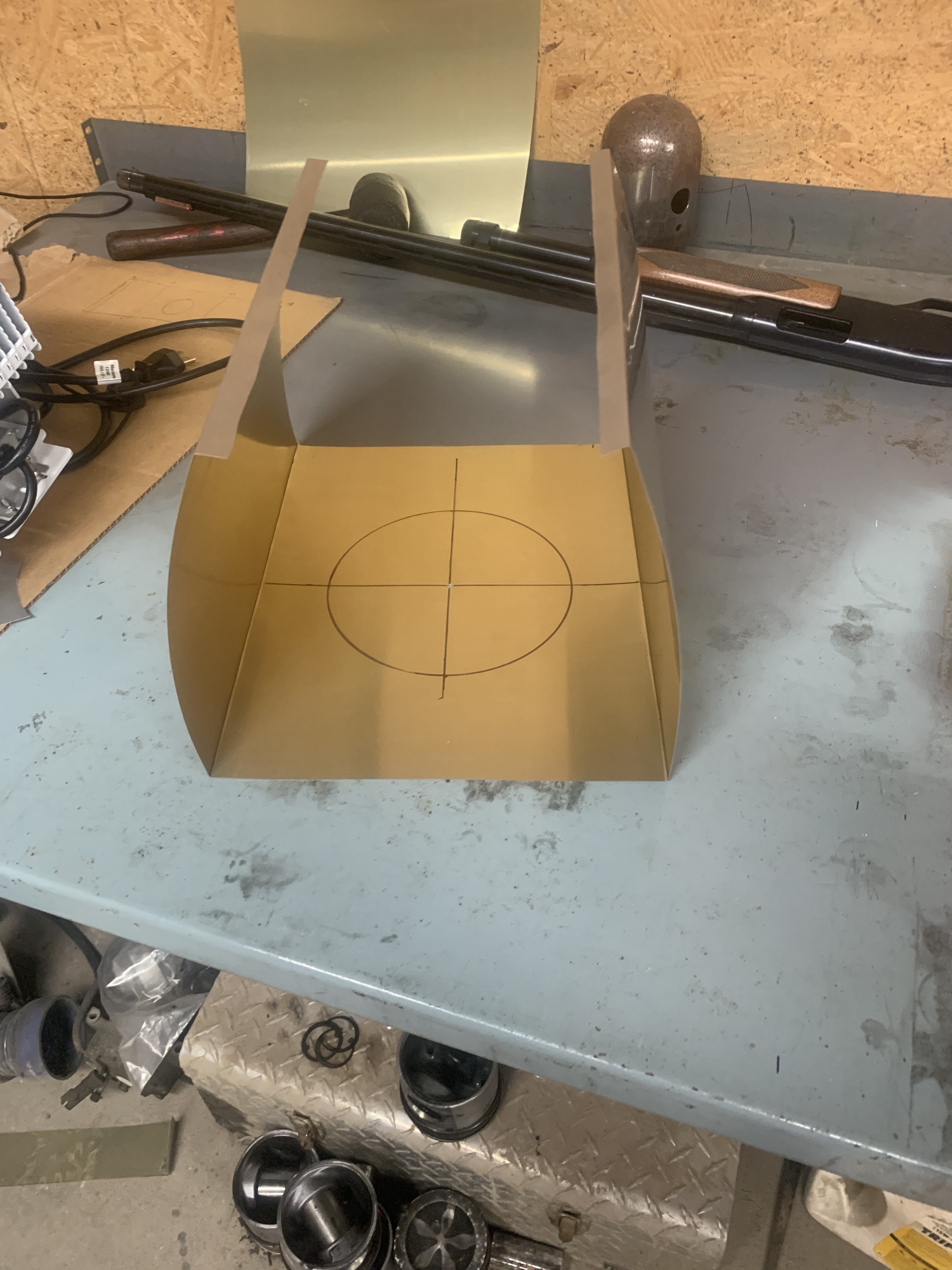

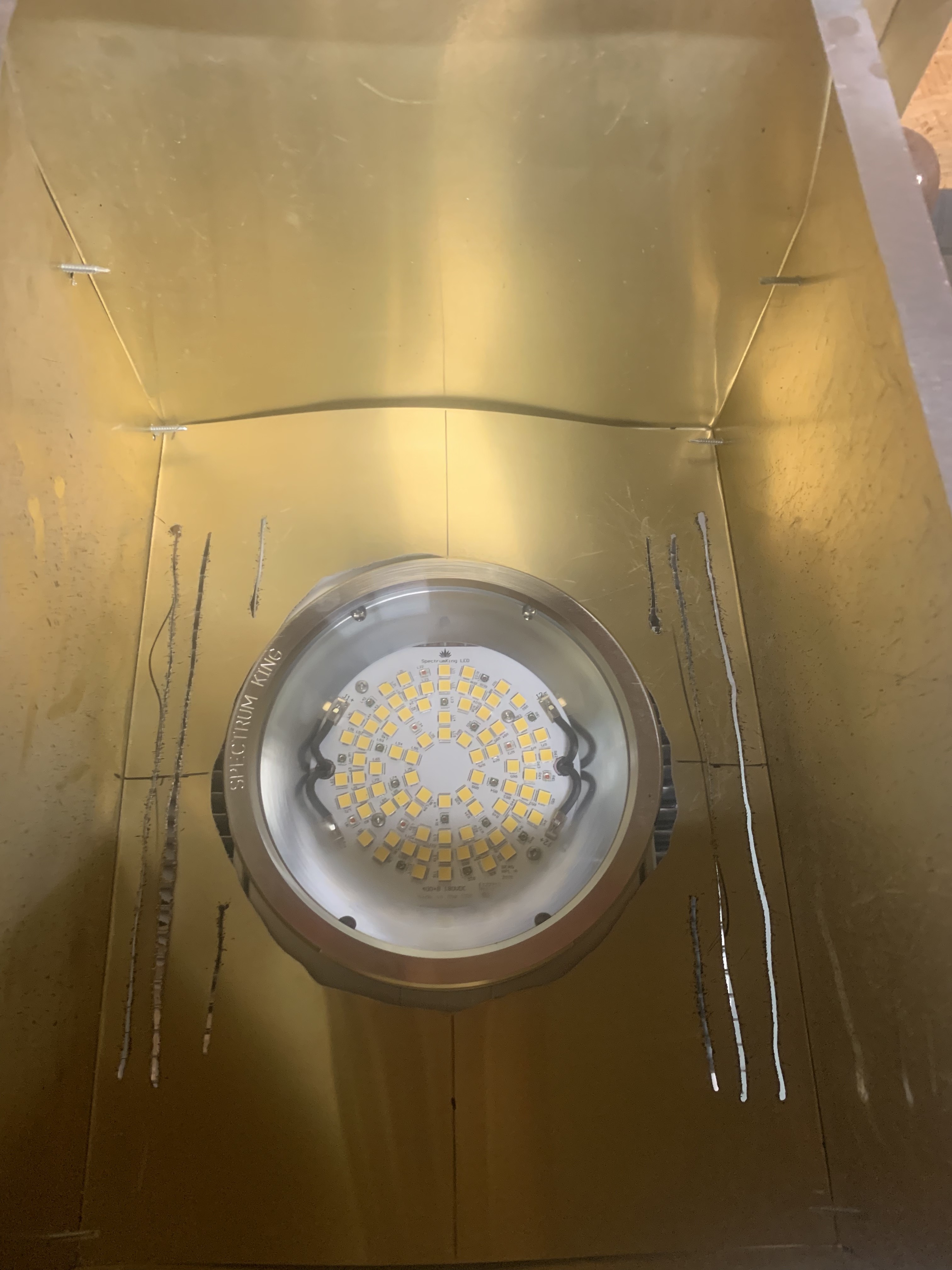

Started on my boxes for lights to exhaust heat. This just some stoner red neck engendering. Yes the hole I meant to make jaggy and not perfect to help pull some air. One picture just shows how the vents will line up. The light will be in the box and taped sealed


Attachments

  • photo84323.jpg
    1.3 MB · Views: 0
  • photo84324.jpg
    1.7 MB · Views: 1
  • photo84325.jpg
    2 MB · Views: 0
  • photo84326.jpg
    1.6 MB · Views: 0
Hi George, all I can say is that you are the Dr. Frankenstein of grow rooms: you've created a monster!! It's awesome. As I was skimming through all the above info, I thought I'd say: I use a dehumidifier during flower, and I'm able to park it in the doorway of the grow room so that the warm air blows out into the hall instead of staying in grow room, which stayed a nice 73 degrees throughout flower--and a bit lower at night with lights off.

Wish I could. I grow in a 10 foot wide 16 foot long wooden shed 100foot from the house so my options seem to be only cool the heat load I have. I’ve thought of putting an duct on my dehumidifier and pull the heat out of the room but I also don’t want a negative pressure of to many exhaust fans and suck a lot of CO2 out

Wish I could. I grow in a 10 foot wide 16 foot long wooden shed 100foot from the house so my options seem to be only cool the heat load I have. I’ve thought of putting an duct on my dehumidifier and pull the heat out of the room but I also don’t want a negative pressure of to many exhaust fans and suck a lot of CO2 out
