DIY: How to replace bearings in your exhaust fan

[Blazed227]

Ok so I decided to fix my fan so I only needed to get 1 for my tent an not have to shell out money for 2 fans.. it turned out being pretty simple.

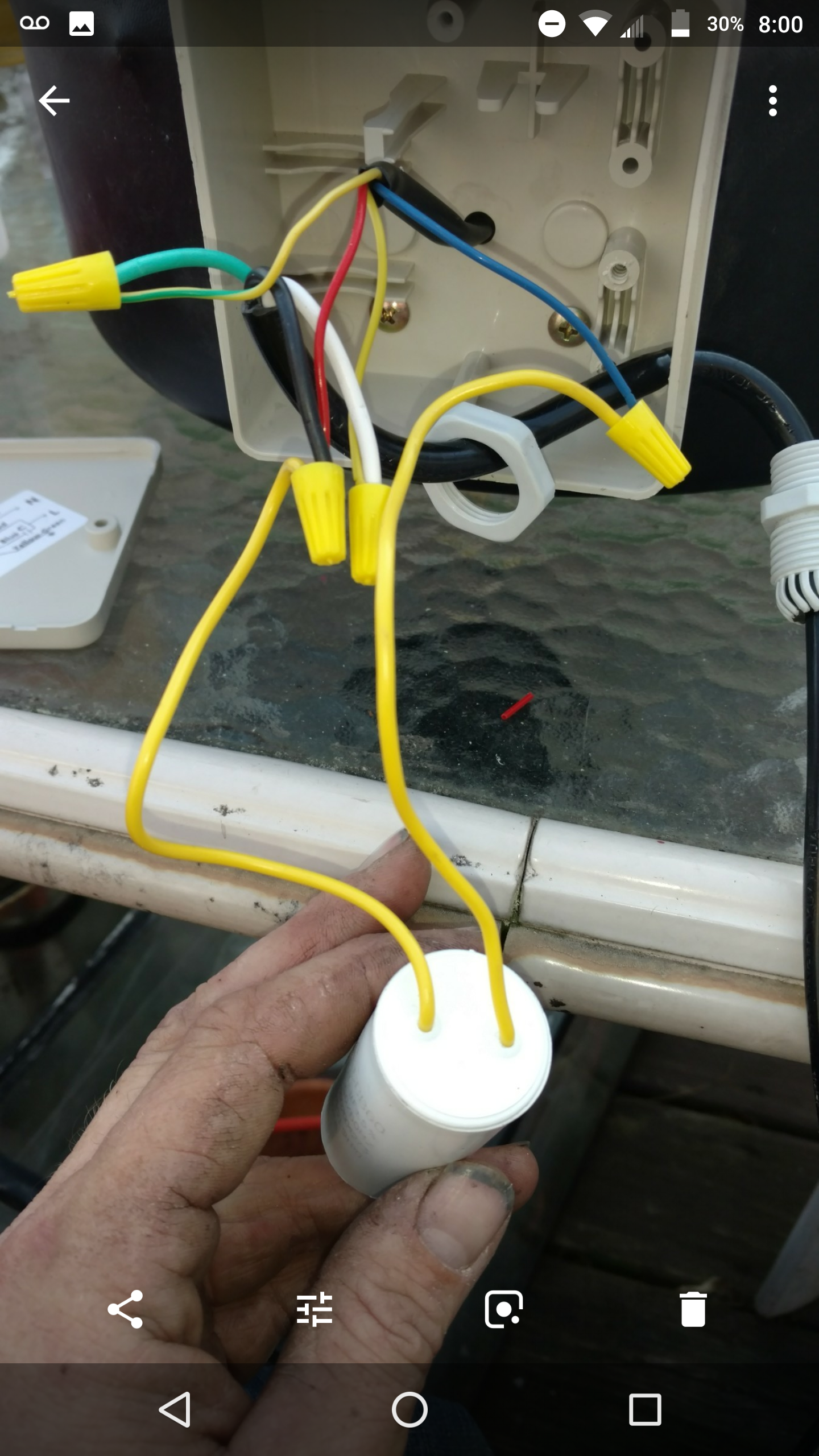

Ok so first U wanna take the electrical box off the side, make sure U take a pic or draw a diagram of the wiring,

Next take the leather cover off the fan



[Blazed227]

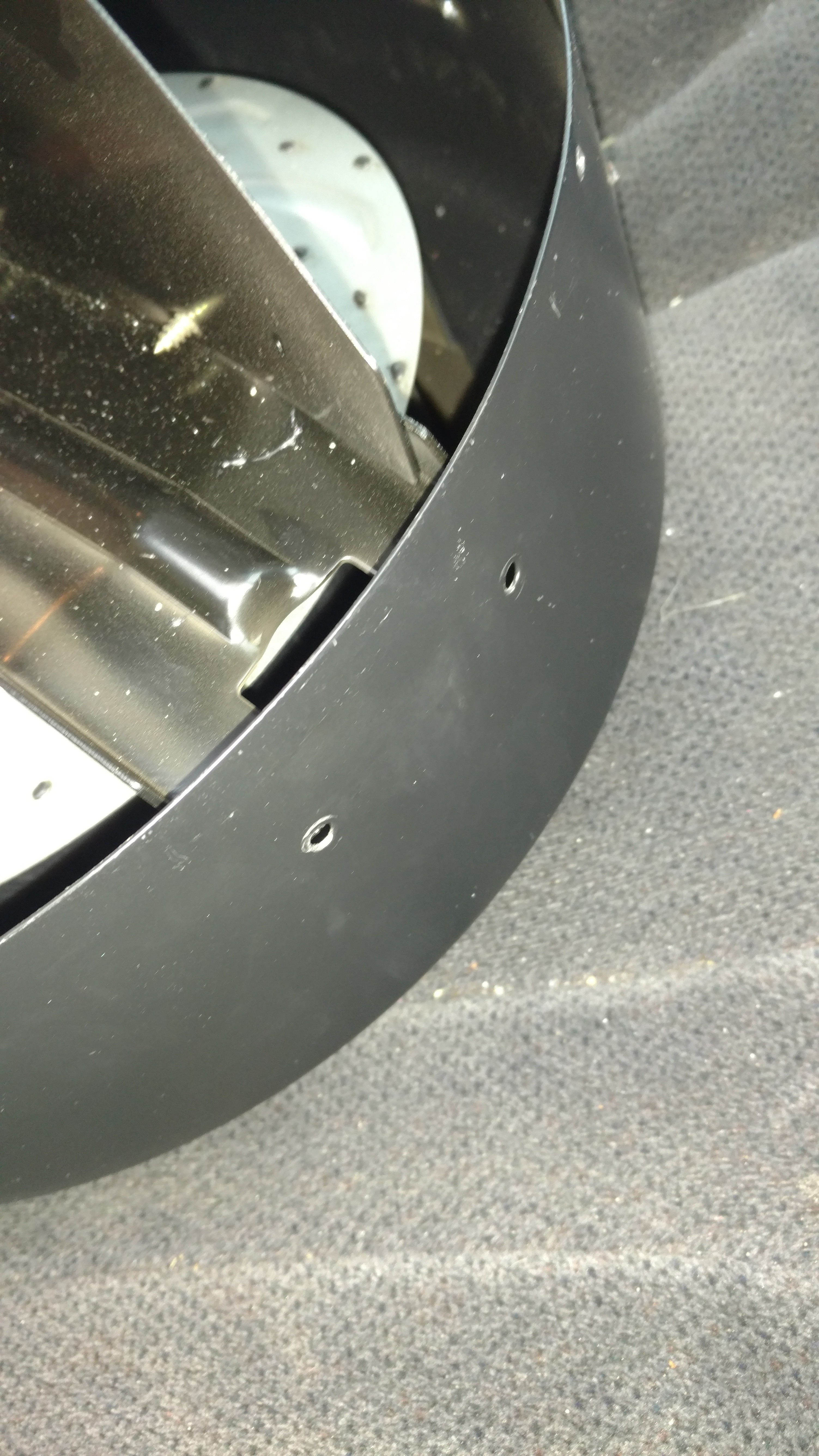

Next take the screws off on the outside of the fan all the way around



[Blazed227]

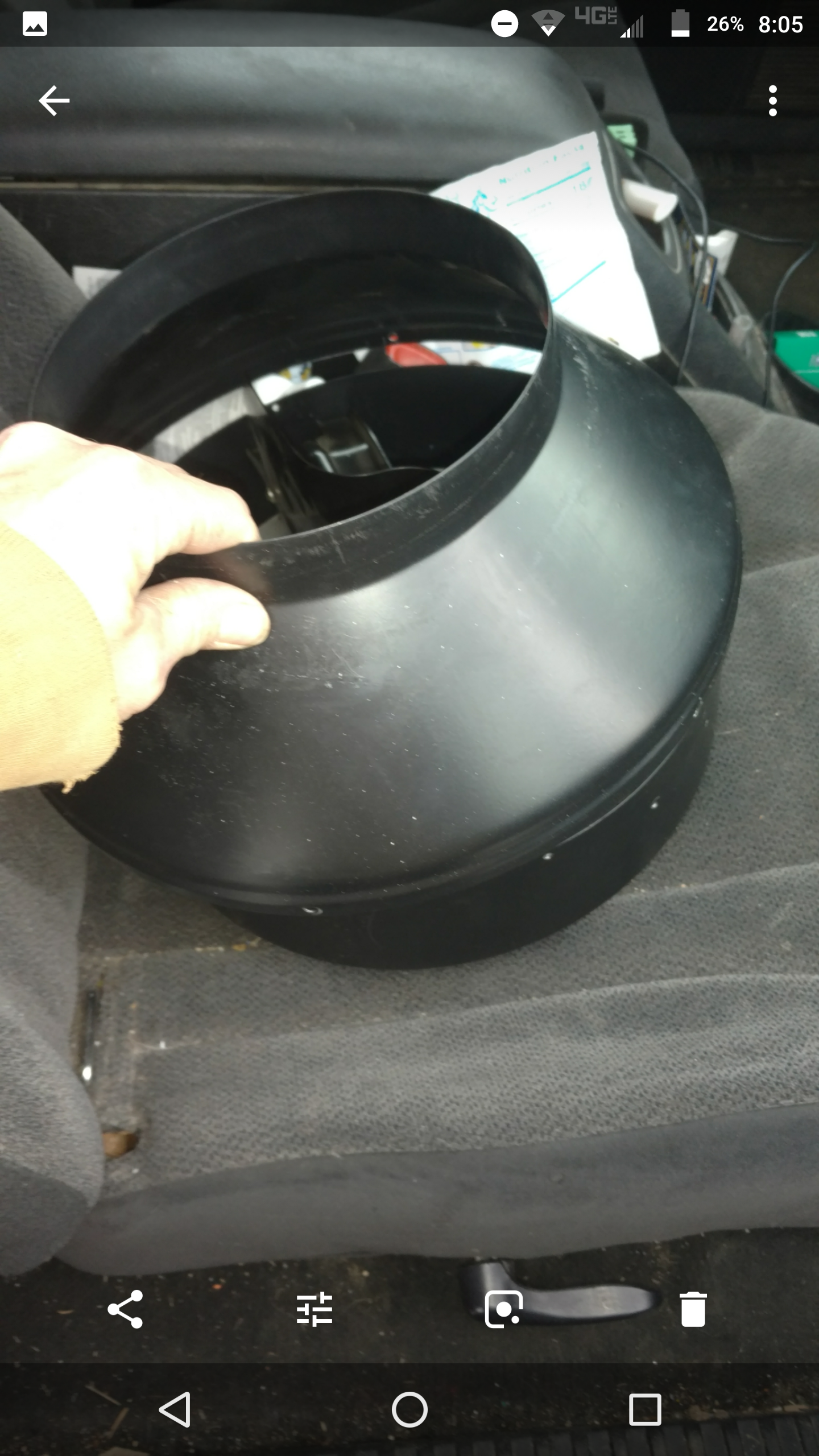

Then pull the fan apart so you can get to the inside like so.

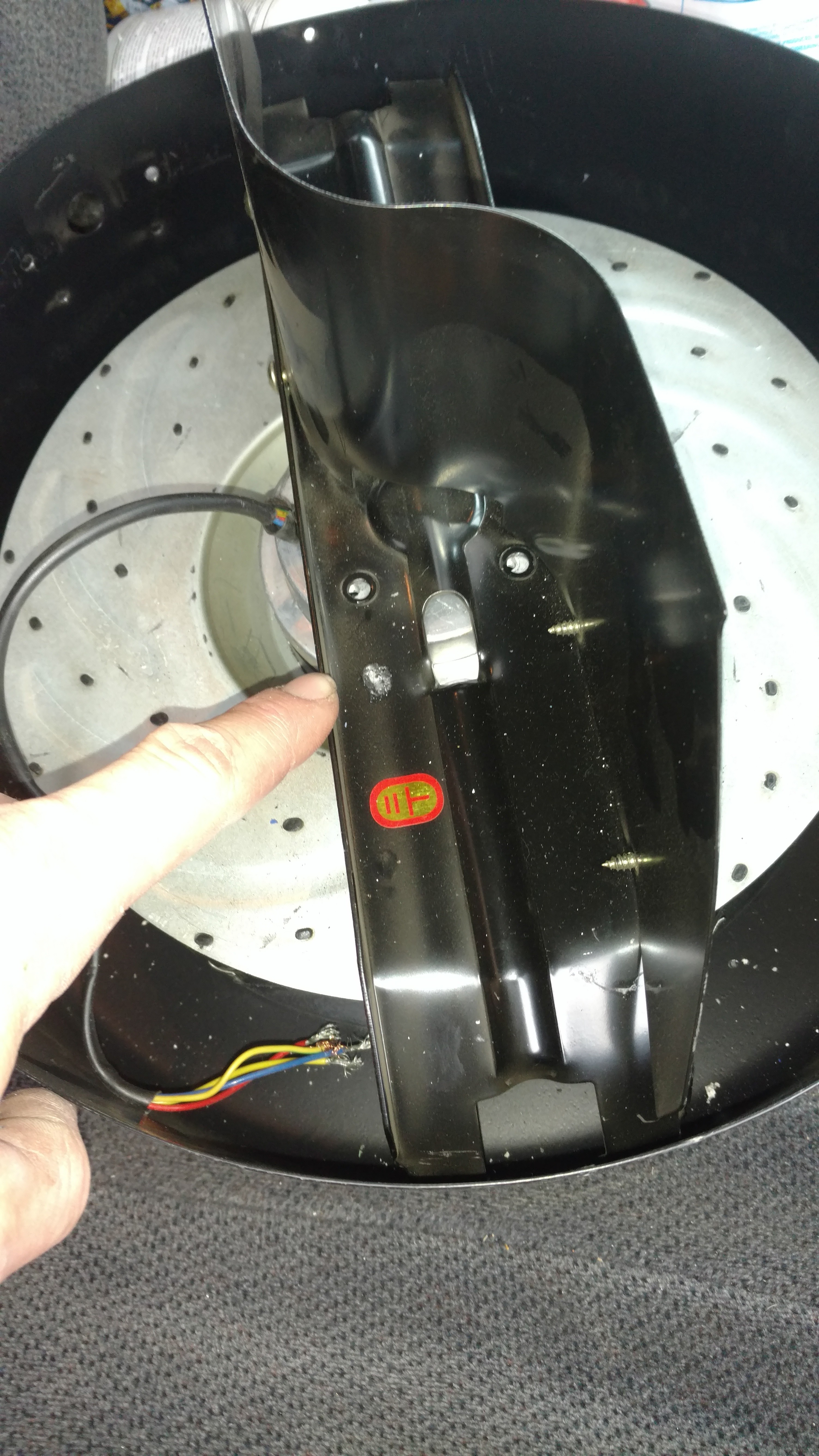

there are 4 screws holding this bracket onto the coil an 2 more at each end, remove all of them



[Blazed227]

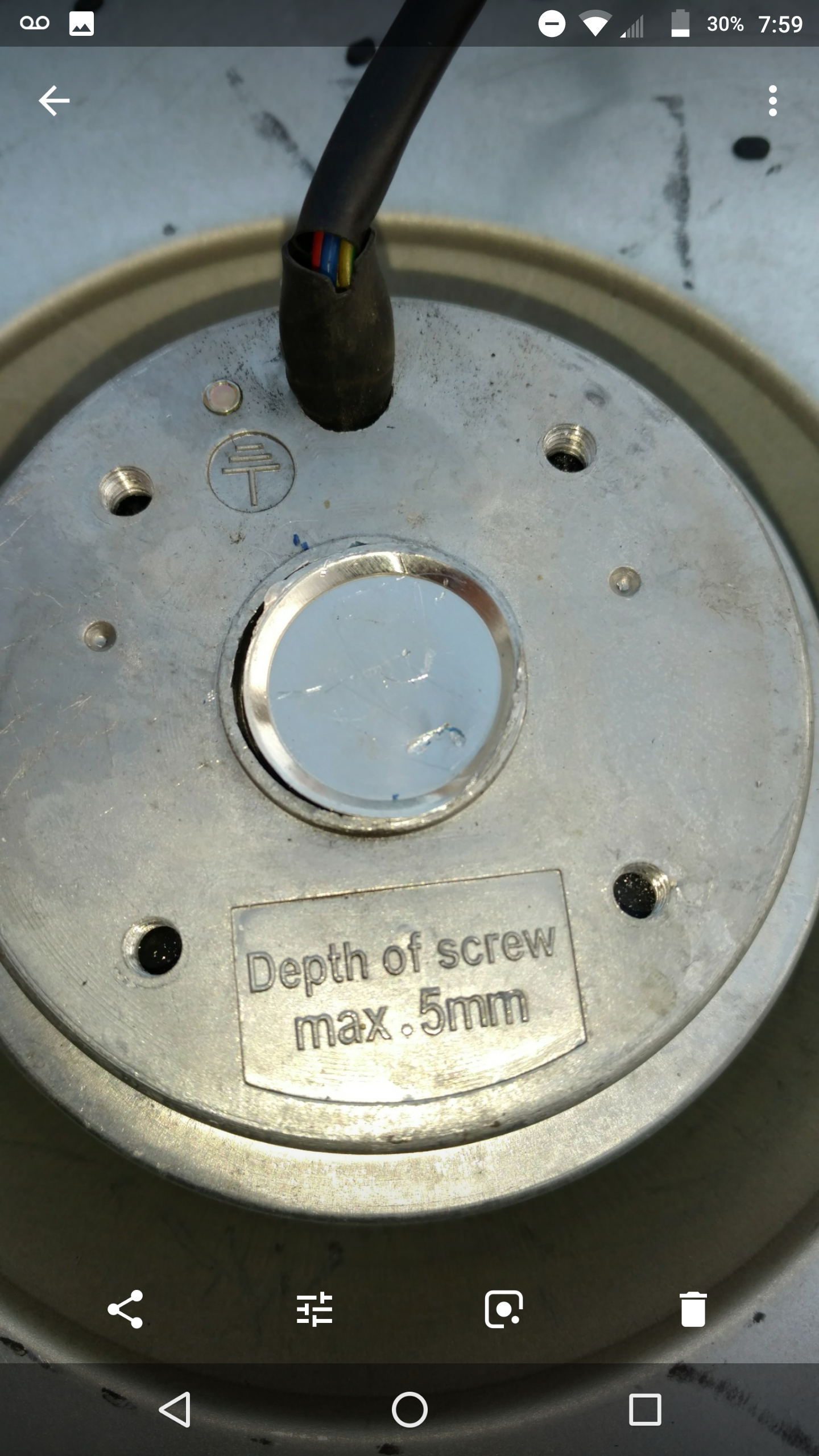

So after U pull that bracket off an you can see the back of the coil, there is a small hole about the size of a quarter that's covered with a thin piece of metal. I used a hammer an screw driver an beat it out.. really thin an breaks pretty easy so don't hit it to hard



[Blazed227]

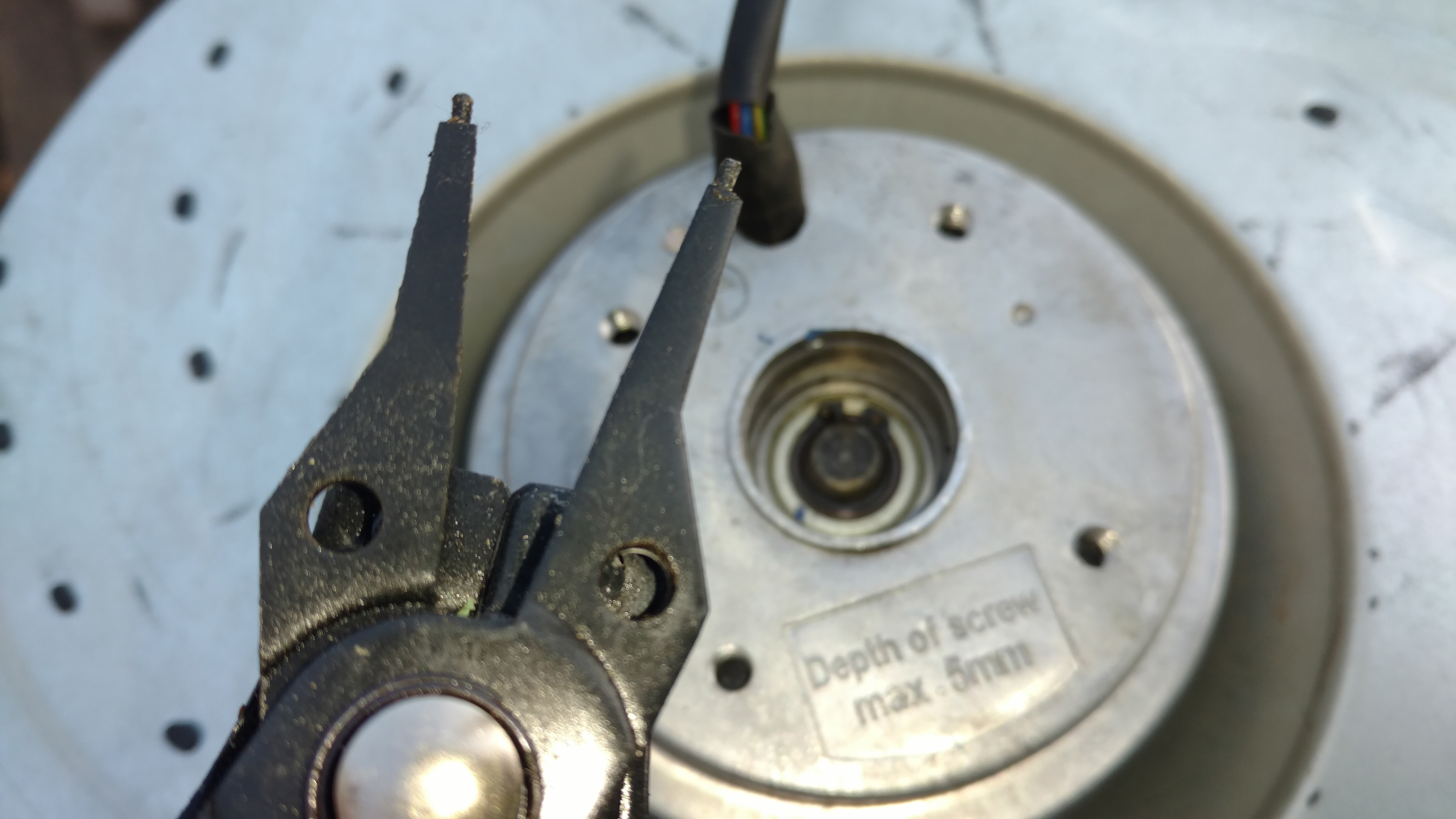

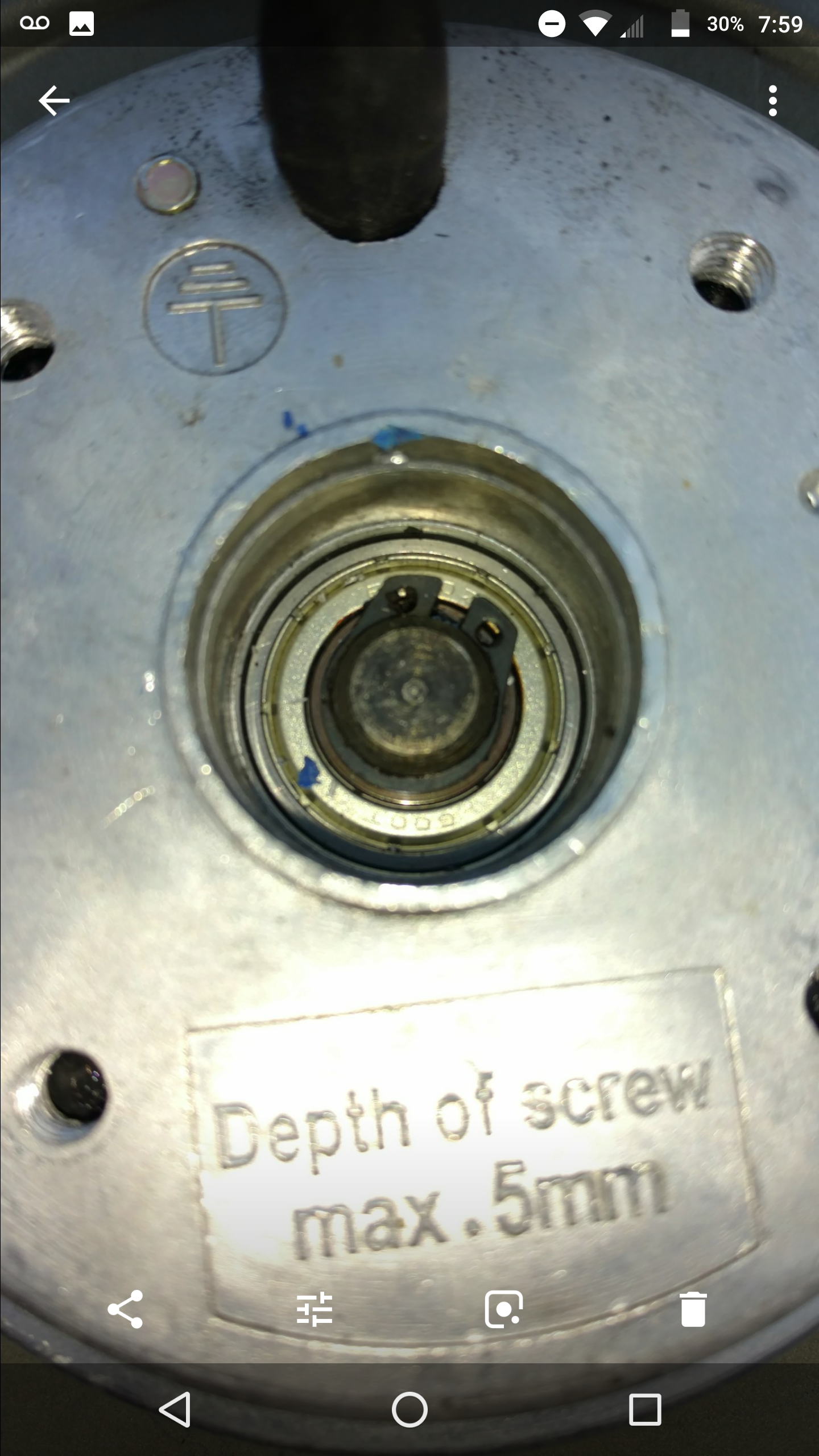

So after U beat that out U will see a little C clip like this.. I have pliers especially for them but U may be able to use needle noses or somethin to get it ,just be careful not to break it!!



[Blazed227]

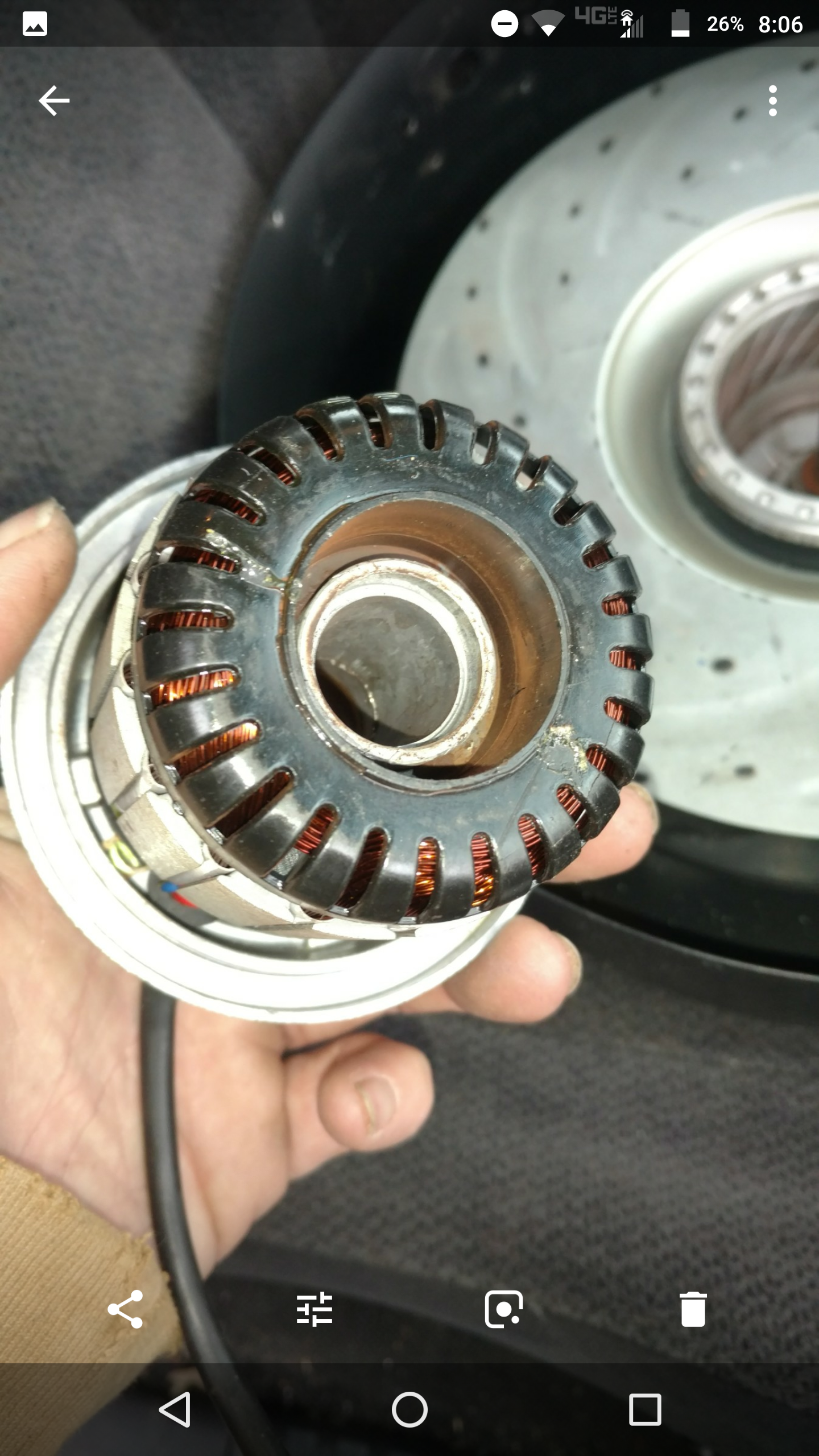

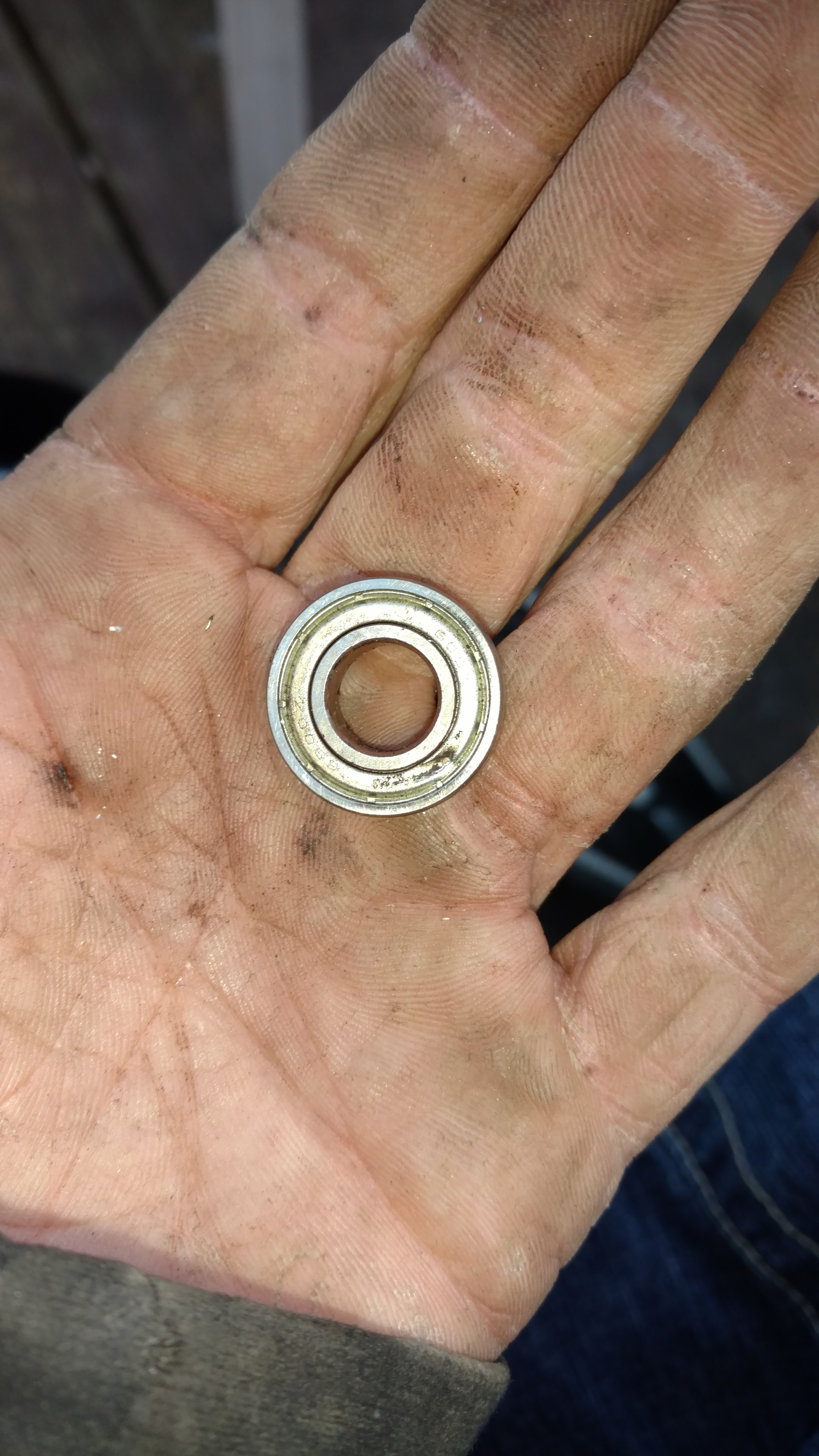

After U take the clip off U can pull the coil right out, the bearings sit in this groove on each side.. there pressed in so U gotta beatem out.. I had a thin metal rod I put thru the bearing on the other side a. Beatem out that way.. then put the new bearings in.. U have to press them in I, used a C clamp an pressed them in at the same time or just get something small an flat an hit them in with a hammer carefully!! Then just put everything back together an U got a working fan
